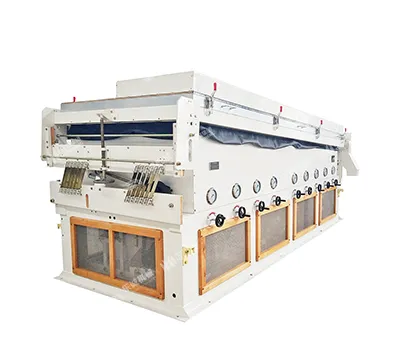

5XZ Gravity Separator

Category：

Gravity Separator
Browse number：

577
Release time：

2024-05-23 10:39:22
Share：

Detailed Description

Description

5XZ Gravity Separator is designed with modular screen deck, uniform air distribution system, precise separation result and long service life. It is an essential equipment in lentils, beans, sesame seeds, sunflower seed etc cleaning lines and professional Seed Processing Plants.

Feature

1) Heavy duty and robust steel structural frame to absorb the vibrations.

2) Fans are dynamically balanced with individual adjustable controller for each fan for precise control of air flow and easy maintenance.

3) Cellular vertical air distribution device mounted under the deck make the air lifting evenly.

4) Square woven mesh screen made of steel wire with no bottom fabric ensures air passing through no dead band.

5) Variable feed speed, deck inclination, vibration speed and air volume by individual control units.

6) Safe guards to all moving parts ensure the safe operation.

7) Environmentally friendly with screen dedusting cover, low noise.

Video

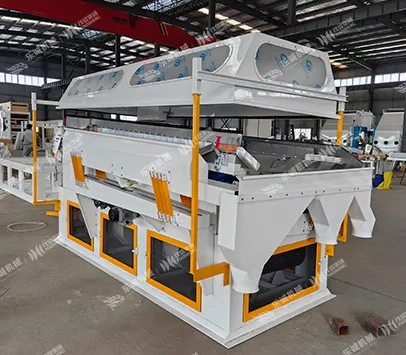

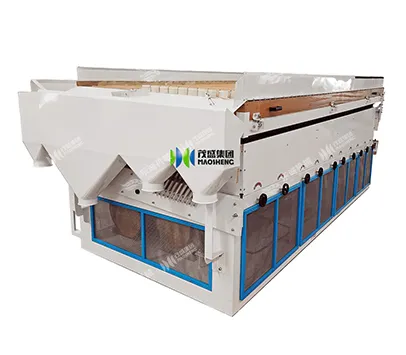

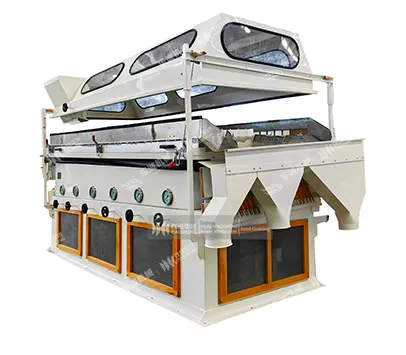

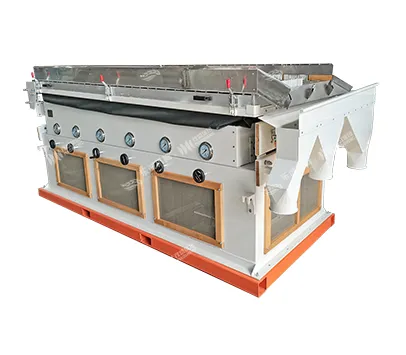

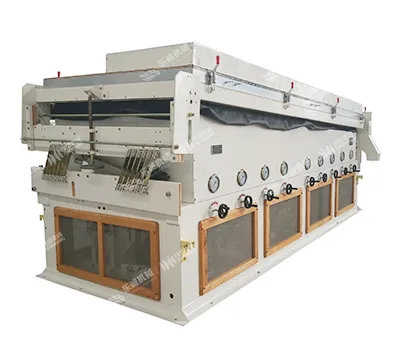

Product Display

41.1.jpg 41.2.jpg

41.3.jpg 41.4.jpg

Main Technical Parameters Of The Equipment

Item		Unit	Specification
Model		Unit	5XZ-3	5XZ-5	5XZ-10	5XZ-15/20
Dimension(LWH)		mm	205013501200	384021101710	430023002500	510023002700
Total Weight		kg	1650	1900	2150	3500
Rated Capacity		t/h	3.0	5.0	10.0	15~20
Total Power		kW	7.45	9.55	14.7	30.3
Amplitude		mm	7	7	7	7
Dip Angle		°	30	30	30	30
Frequency		1/s	300~800	300~800	300~800	300~800
Screen Area		m2	2.24	3.4	5.36	8.42
Selection Efficiency		%	≥98.5	≥98.5	≥98.5	≥98.5
Cleaning Efficiency	Light	%	≥99	≥99	≥99	≥99
Cleaning Efficiency	Heavy	%	≥95	≥95	≥95	≥95
