Description
TCQYS Dual Drum Sieve pre cleaner is widely used the primary cleaning of all cereals such as wheat, corn, canola, oilseeds, lentils, peas and similar products before drying or storage, to remove large and smalll impurity by two cylinderical sieves, and light impurities such as chaff, straw, light grain, small wooden block, dust by air cleaning from top and bottom .
It is the ideal pre-cleaning equipment for Flour mills, storage warehouses, rice mills, oil mills, alchohol breweries, starch mills, feed mills, chemical plants which raw granular material need to be cleaned or classified.
Features
1.High capacity for cleaning large and small impurities
2.Heavy dutry roller support system for large capacity operation
3.Ajustable drum angle for flexible process and high efficiency
4.Outer screen brush cleaning mechanism for block-proof production
5.Relaible roller charin drive mechanism for stable processing
6.Dust cover struture on top / bottom
7.Laser cutting applies to sheet metal components for quality and accuracy
8.Carbon dioxide gas shielded welding.
9.CNC machining centers enmsure precise fabrication
10.Powder coated parts and components for best painting quality and duration.
Video

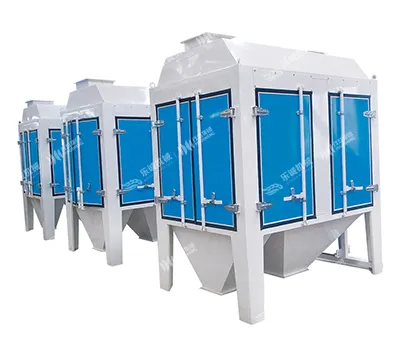

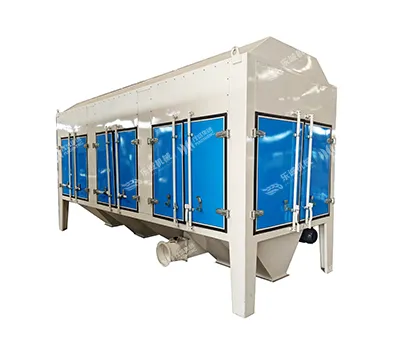

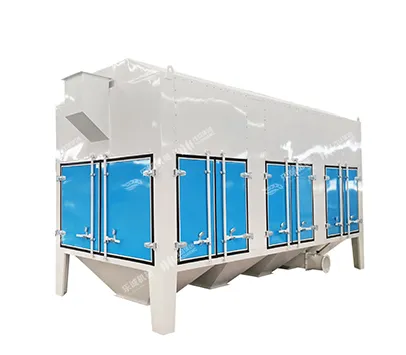

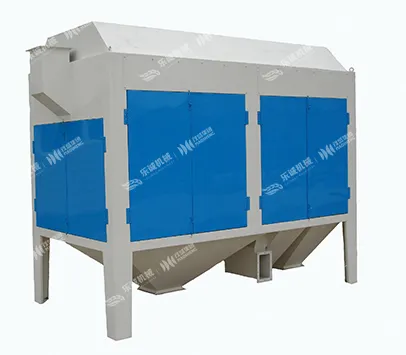

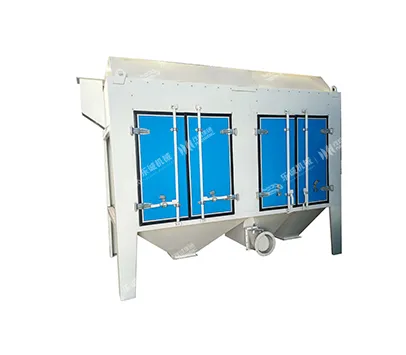

Product Display
Main Technical Parameters Of The Equipment
Model | Capacity(t/h)(Wheat) | Air Volume(Up+Down)(m3/h) | Power(kw) | Overall Size(L*W*H)(mm) | Weight(kg) |
Pre-cleaning | |||||
TCQYS85*190 | 30 | 2200+1800 | 1.5 | 2950*1470*2490 | 860 |
TCQYS100*220 | 50 | 2900+2600 | 2.2 | 3410*1620*2680 | 1320 |
TCQYS100*320 | 70 | 3900+2600 | 4 | 4380*1770*3060 | 1670 |
TCQYS100*420 | 100 | 5400+2600 | 5.5 | 5600*1900*3460 | 2080 |
TCQYS125*320 | 90 | 4900+2600 | 4 | 4680*2220*3460 | 2650 |
TCQYS125*420 | 110 | 6900+2600 | 5.5 | 5600*2220*3660 | 3160 |
