TQLM Rotary Cleaner

Category：

Rotary Cleaner
Browse number：

526
Release time：

2024-05-23 10:21:01
Share：

Detailed Description

Description

The TQLMZA series plane rotary screen was developed based on the TQLMZ series plane rotary screen, digesting and absorbing the advanced technology of similar equipment at home and abroad. It is a large, small, light and miscellaneous equipment for cleaningfood. Can be widely used in grain, feed, food, chemical, wine and other industries to clean up, grading.

According to the requirements of the separated material, the screen can adjust the overlapping weight of the weight block, the screen body will produce three kinds of movement trajectory at the same time: the front part is a circle, the middle part is an ellipse, and the tail part is a linear reciprocating motion. All kinds of granular materials can be effectively cleaned.

Video

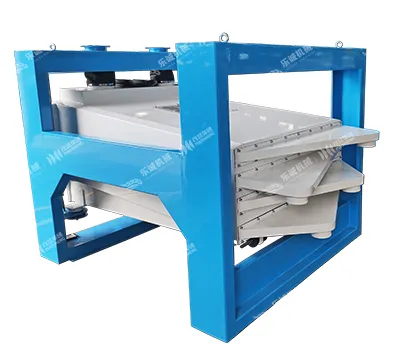

Product Display

37.1.jpg 37.2.png

Main Technical Parameters Of The Equipment

Model	Capacity ( t/h)	Screen Size (cm)	Dimension (LWH) (mm)	Weight (Kg)	Power (kW)	Air Volume (m³/h)
TQLMZA 80*150	4~6	80*150	230012101320	750	0.55	3600
TQLMZA 100*150	6~8	100*150	230014101320	800	0.75	4800
TQLMZA 125*150	8~12	125*150	230016101320	850	0.75	5400
TQLMZA 160*150	10~15	160*150	230020101320	900	1.1	6000
TQLMZA 180*150	15~20	180*150	230022101320	950	1.1	8000
TQLMZA 125*200	8~12	125*200	276616101320	900	1.1	5400
TQLMZA 150*200	10~12	150*200	276619101320	1000	1.1	6000
TQLMZA 160*200	10~15	160*200	276620101320	1050	1.1	6000
TQLMZA 180*200	15~20	80*200	276622101320	1150	1.1	8000
