TQSF Gravity Destoner & Grader

Category：

Gravity Grader & Destoner
Browse number：

385
Release time：

2024-05-23 10:10:20
Share：

Detailed Description

Description

TQSF gravity destoner & Grader is mainly used for grain grading and stone removing for grains and granular materials such as wheat, soybean, rice, maize, coffee beans. With the external air suction, the destoner can effectively remove the lighter impurity such as large straws, grass seeds, husks and dust, it can also be used for seed selection of various grains.

Advantages : good grain grading, stone removing and impurity removal performance; compact structure, no rising dust, low noise, low power consumption, convenient operation and simple maintenance.

Features

1. Modular design, robust & compact structure, with necessary control systems.

2. Separating stone and heavy impurity from grain. Destoning & grading in one machine.

3. Dual separating decks for large capacity and good cleaning result

4. Adjustable screen deck slopes with integration of air speed for processing requirement

5. Screen deck designed with a range of shaking strikes and angles for flexible process

6. Unique design for preventing grain back flow (Patent: ZL 201020577278.2) and grain leaking from stone discharge port

7. Distinctive air blow back mechanism (Patent: ZL 201120180371.4) with user friendly air flow control board

8. Dual motor vibrators driving system

Video

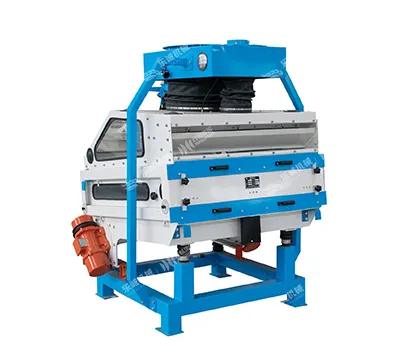

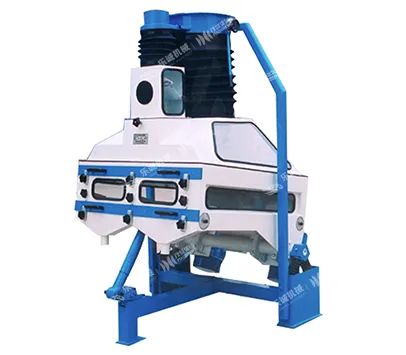

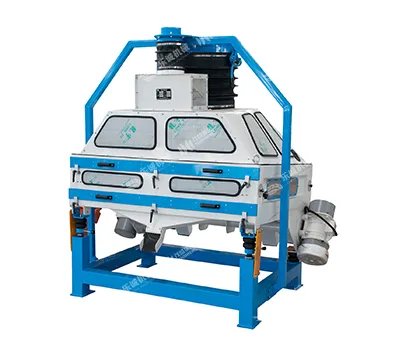

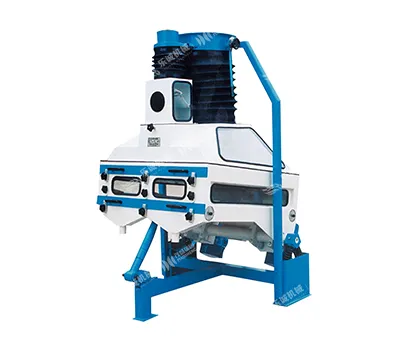

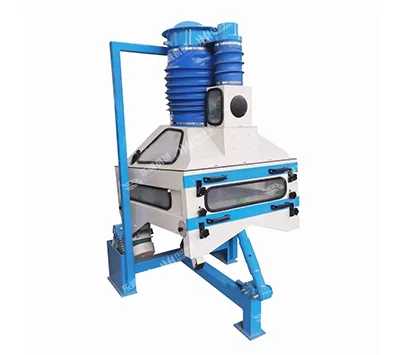

Product Display

36.1.jpg 36.2.jpg

36.3.jpg 36.4.jpg

Main Technical Parameters Of The Equipment

Model	Screen Width (cm)	Rated Capacity (t/h)	Air Pressure (pa)	Air Volume (m³/h)	Amplitude (mm)	Screen Dip Angle(°)	Power (kW)	Frequency (1／min)	Weight (kg)	Overall Dimension (LWH) (mm)
TQSF43	43	1-1.5	＜980	3000	4-5	5-9	2×0.25	960	215	1270×700×1600
TQSF50	50	2-4	＜980	4000	4-5	5-9	2×0.25	960	230	1420×780×1800
TQSF60	60	3-5	＜980	4500	4-5	5-9	2×0.25	960	280	1450×876×1800
TQSF80	80	5-7	＜980	6000	4-5	5-9	2×0.25	960	340	1450×1046×1800
TQSF100	100	7-9	＜980	8000	4-5	5-9	2×0.25	960	400	1500×1246×1900
TQSF125	125	9-11	＜980	10200	4-5	5-9	2×0.25	960	500	1470×1496×1920
TQSF150	150	11-14	＜980	12000	4-5	5-9	2×0.25	960	600	1580×1746×1920
TQSF175	175	14-18	＜980	15000	4-5	5-9	2×0.25	960	750	1470×1990×1920
TQSF200	200	16-20	＜980	17000	4-5	5-9	2×0.25	960	1000	1470×2292×1920
TQSF250	250	20-22	＜980	20400	4-5	5-9	2×0.25	960	1050	1470×2835×1920
