TQLZ Vibration Screen Cleaner

Category：

TQLZ Vibration Screen Cleaner
Browse number：

545
Release time：

2024-05-23 10:38:07
Share：

Detailed Description

Description

TQLZ Vibration Cleaner is widely used for pre-cleaning and cleaning of grains and seeds. It can process various grains such as wheat, maize, rice,beans, oil seeds by changing different screens.

The unique design long locking screw feeding control,Modular drawer-type sieve , high quality rubber spring , Display plate for vibrating direction angle and amplitude for users convenience and easy maintenance.

It can further remove light impurities and dust if equipped with vertical air aspirator, and get ideal air cleaning effect.

It is the necessary machine in grain processing industry.

Video

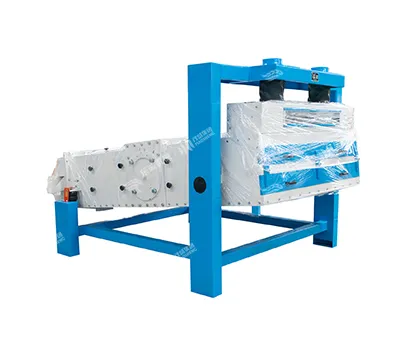

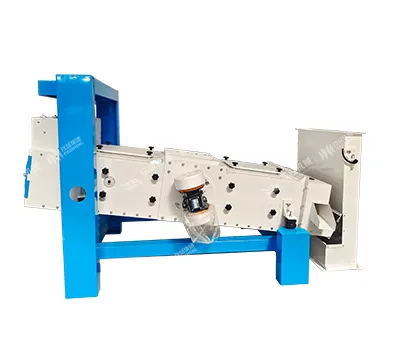

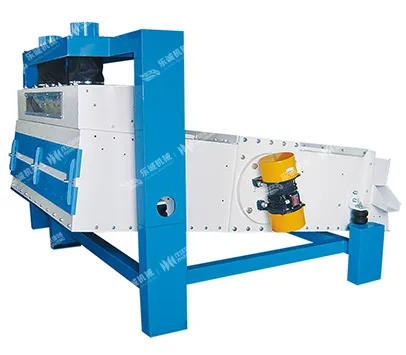

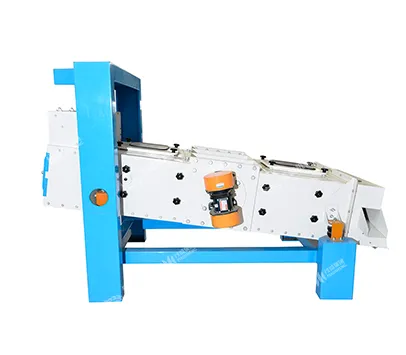

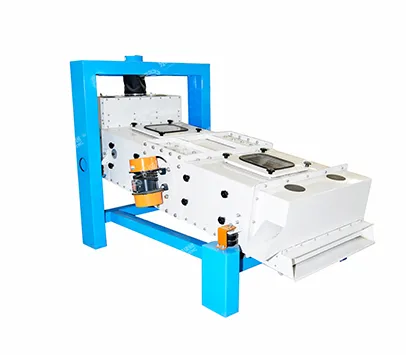

Product Display

40.1.jpg 40.2.jpg

40.3.jpg 40.4.jpg

Main Technical Parameters Of The Equipment

Model	Screen Size (W x L) (cm2)	Capacity on Wheat (t/h)		Air Suction Volume (m³/h)	Power (kW)	Size (L x W x H) (mm)	Weight (kg)
Model	Screen Size (W x L) (cm2)	Pre-cleaning	Cleaning	Air Suction Volume (m³/h)	Power (kW)	Size (L x W x H) (mm)	Weight (kg)
TQLZ60x120	60x120	12	4	1920	2x0.25	184012101322	380
TQLZ80*120	80*120	15	5	2550	2x0.25	184013501365	400
TQLZ100x130	100x130	20	7	3120	2x0.25	194015501382	450
TQLZ100x180	100x180	30	11	4800	2x0.37	247015501530	550
TQLZ100*230	100*230	40	14	5400	2x0.37	294015501557	570
TQLZ150*230	150x230	60	22	8100	2x0.75	296021801636	680
TQLZ180*2300	180x230	70	26	9600	2x1.1	296024801873	1100
TQLZ180x270	180x270	75	28	10500	2x1.1	3107x2480x1873	1500
